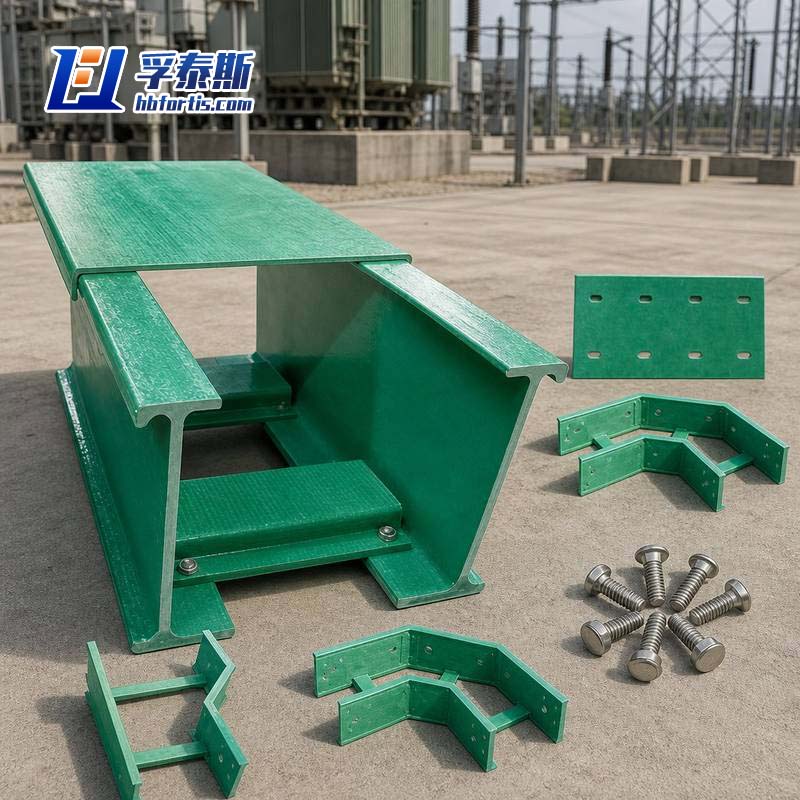

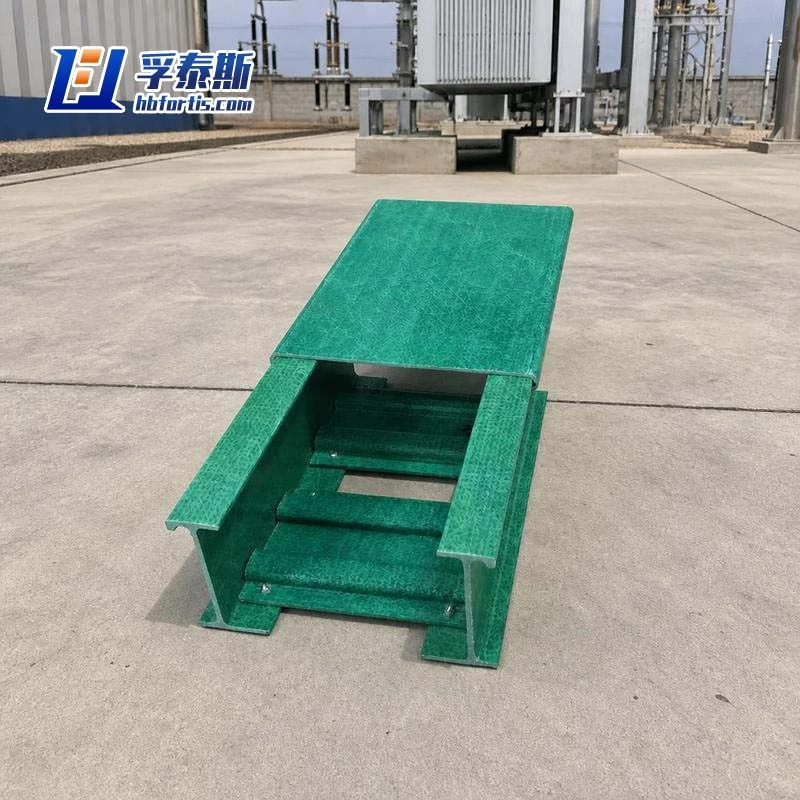

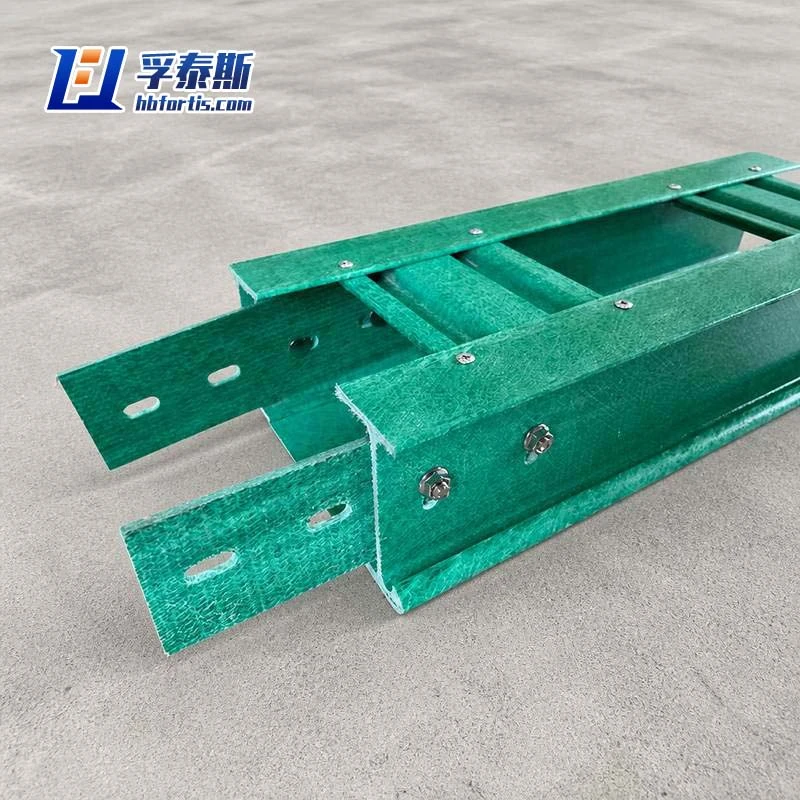

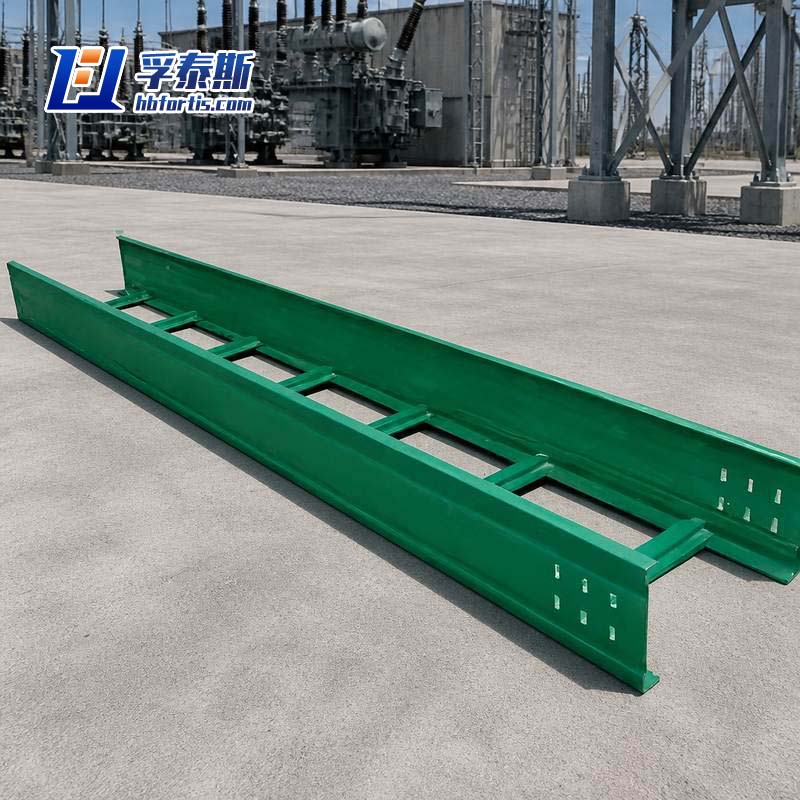

As a China-based FRP cable tray manufacturer and exporter, we supply corrosion-resistant fiberglass cable trays directly from our factory to chemical plants, offshore platforms, and wastewater treatment facilities worldwide. Our FRP trays withstand harsh acids, salts, and humidity while reducing structural load, making them a practical alternative to steel in aggressive environments. With export experience across Southeast Asia, the Middle East, and Europe, we support project-specific sizes, load ratings, and resin formulations. Partner with us for factory-direct pricing, stable lead times, and technical documentation for your next cable management project.
Hebei Fortis Technology Co., Ltd Produktbroschüre
Product Advantages
Superior Corrosion Resistance in Aggressive Environments
FRP cable trays are engineered to withstand continuous exposure to acids, alkalis, salts, and oxidizing agents that would quickly degrade galvanized steel or aluminum. Unlike metal systems that require frequent painting or hot-dip galvanizing, fiberglass-reinforced plastic resists rust, electrochemical corrosion, and chloride attack without any protective coating. This makes FRP trays a preferred choice for chemical plants, offshore platforms, wastewater treatment facilities, and coastal installations where humidity and chemical fumes are unavoidable. The result is a longer service life and significantly lower maintenance costs over the entire project cycle.
Excellent Electrical Insulation and Non-Magnetic Properties
FRP cable trays are inherently non-conductive and non-magnetic, which eliminates the risk of electrical grounding issues and inductive heating that can occur with metal trays. This property is particularly valuable in substations, power plants, and sensitive electronic control rooms where electromagnetic interference must be minimized. Because the material does not conduct electricity, it also improves safety for maintenance personnel working around live cables, reducing the need for additional insulating barriers or grounding measures.
Fire Retardant and Low Smoke Emission
Modern FRP cable trays can be produced with fire-retardant resin systems that meet international standards such as ASTM E84 and IEC 60695. These formulations resist flame spread and emit low levels of smoke and toxic gas during a fire event, which is critical for tunnels, metro systems, petrochemical complexes, and enclosed industrial spaces. By choosing the appropriate resin grade, project owners can satisfy fire safety regulations without switching to heavier or more expensive metal alternatives.
Parameter Specifications
|
Product |
FRP Cable Tray |
|||
|
|
||||
|
Model |
Width(mm) |
Height(mm) |
Length(mm) |
Thickness(mm) |
| FT-CLD5a |
50mm 100mm 150mm 200mm 300mm 450mm 600mm |
15mm 50mm 75mm 100mm 150mm |
2000mm 3000mm 6000mm |
0.8mm 1.0mm 1.2mm 1.5mm 2mm 2.5mm |
| FT-CLD10a | ||||
| FT-CLD15a | ||||
| FT-CLD20a | ||||
| FT-CLD30a | ||||
| FT-CLD45a | ||||
| FT-CLD60a | ||||
