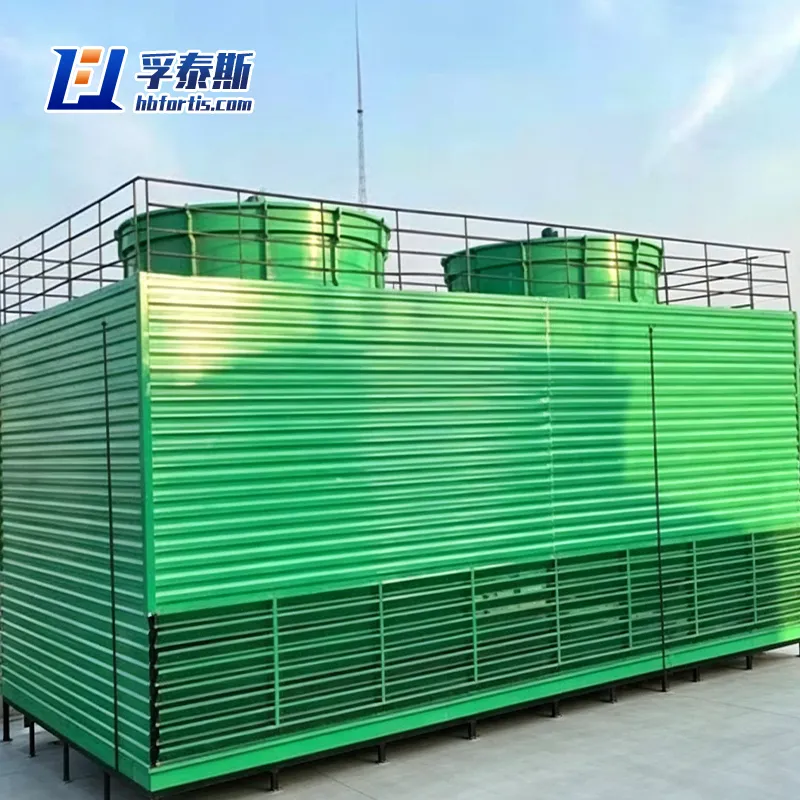

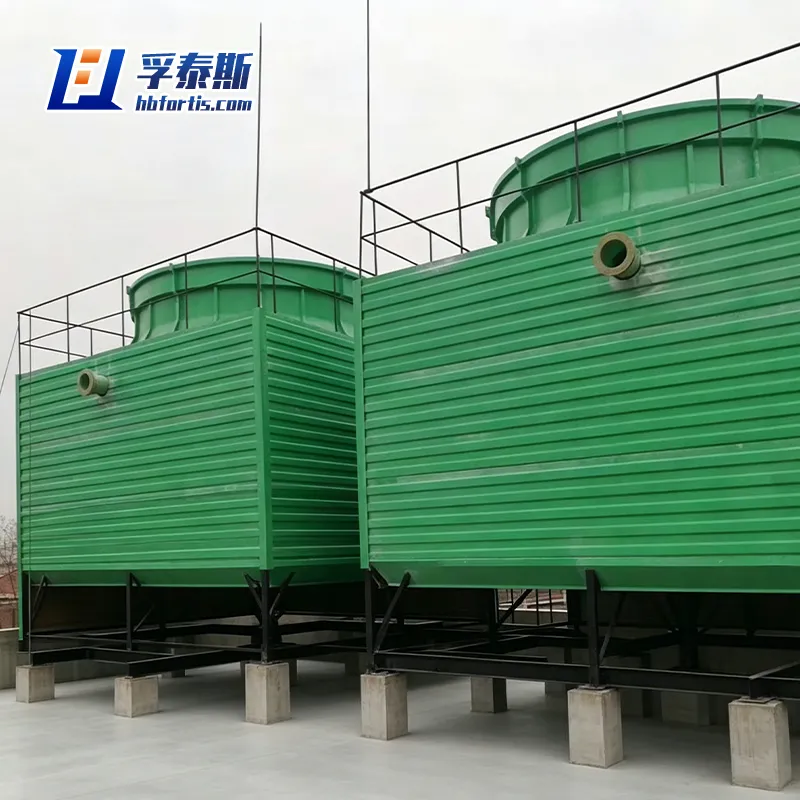

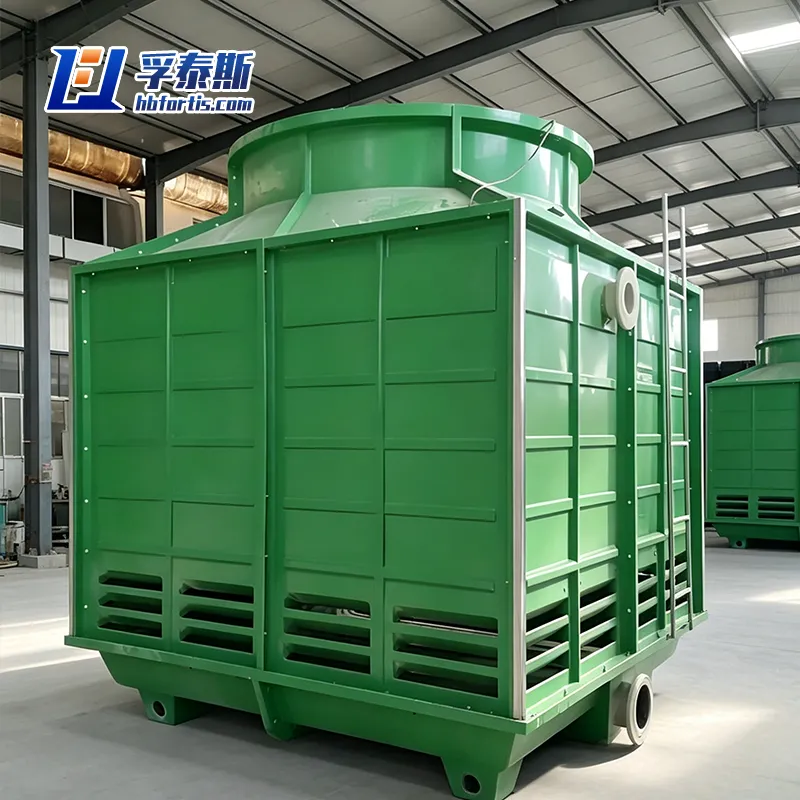

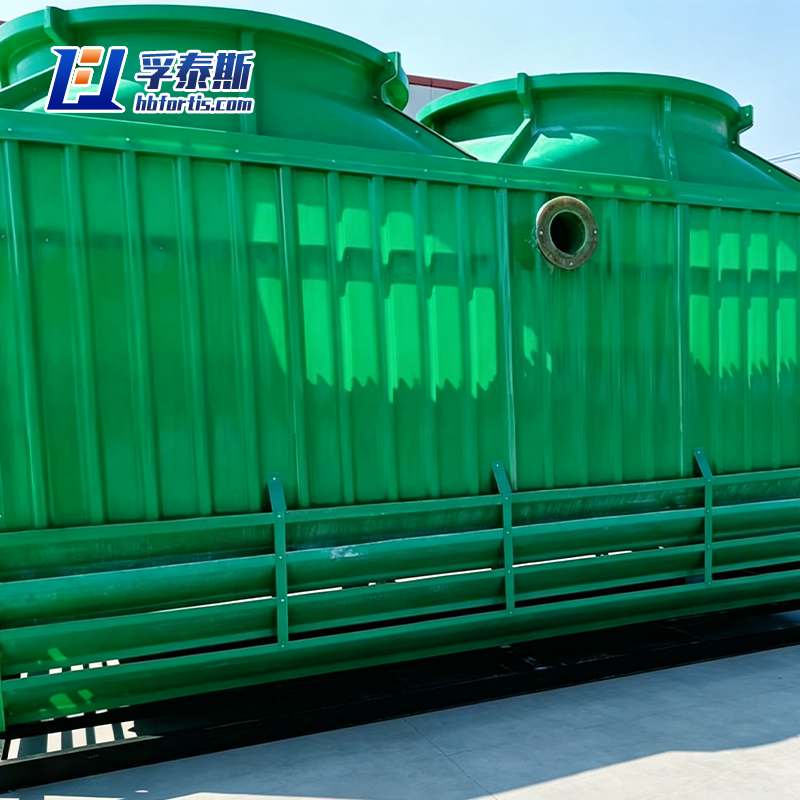

As a self-manufacturing exporter based in China, we supply the Square Cross Flow FRP Cooling Tower AHBLG-300 directly to EPC contractors and plant owners in petrochemical refining, power generation auxiliary cooling, and large-scale commercial HVAC central plants. Unlike trading firms, our factory-controlled pultruded FRP casing and thermally efficient cross-flow film fill ensure stable approach temperature under high wet-bulb conditions, while the low-drift eliminators meet EPA standards. We provide full heat-load calculation reports, motor nameplate traceability, and containerized packing for sea freight—backed by on-site commissioning support for overseas projects.
Hebei Fortis Technology Co., Ltd Produktbroschüre
Product Advantages
True Factory-Direct Pricing with Full Supply Chain Transparency
As the actual manufacturing exporter, not a middleman, we control every cost layer from raw FRP resin procurement to final assembly. This allows us to offer the AHBLG-300 at ex-factory prices while providing full visibility into material sourcing, production lead times, and quality checkpoints. You receive a commercial invoice that directly reflects manufacturing cost structures, making your project budgeting predictable and competitive in tender bids.
Heavy-Duty Cross-Flow Design for Continuous Industrial Operation
The AHBLG-300 adopts a true cross-flow air-water path, where air enters horizontally through the louvers while water falls vertically over the fill. This design inherently reduces pump head pressure compared to counter-flow models, cutting energy consumption by up to 12% under full load. More importantly, the cross-flow configuration allows easy access to the fill and distribution basin for visual inspection and cleaning—critical for 24/7 petrochemical and power plant schedules where unplanned downtime is not an option.
Engineered FRP Structure Resists Extreme Weather and Chemical Exposure
Our square casing is manufactured using pultruded FRP profiles with UV-stabilized gel coating, specifically formulated to withstand prolonged exposure to acidic rain, salt spray, and process water chemical carryover. The structural design incorporates anti-vibration bolted connections and reinforced corner posts, enabling the AHBLG-300 to resist wind loads up to 150 km/h and seismic zone 4 requirements. This ensures dimensional stability over a 20-year service life, even in coastal or desert industrial environments.
Parameter Specifications
|
|
||||||||||
|
Product |
Square Cross Flow Cooling Tower |
|||||||||
|
Model |
τ=28℃ |
Main Dimensions (mm) |
Air Volume m³/h |
Fan Diameter (mm) |
Motor Installed Capacity (kw) |
Weight (t) |
τ=28℃ |
Noise at standard point |
||
|
Total Height |
Length× |
self-weight |
operating weight |
|||||||
|
AHBLD/HBLD-300 |
300 |
4514 |
7250× 3810 |
167000 |
3400 |
7.5 |
5.85 |
13.38 |
/ |
59.0 |
|
AHBLD/HBLD-500 |
500 |
5230 |
8033× 4650 |
260000 |
4200 |
11.0 |
9.2 |
17.24 |
/ |
61.5 |
|
AHBLD/HBLD-700 |
700 |
5319 |
8930× 6640 |
370000 |
5000 |
18.5 |
12.95 |
26.05 |
/ |
62.6 |
|
AHBLCD/HBLCD-300 |
300 |
6230 |
10650× 3810 |
167000 |
3400 |
7.5 |
7.05 |
14.18 |
/ |
52.5 |
|
AHBLCD/HBLCD-500 |
500 |
7030 |
11640× 4650 |
260000 |
4200 |
11.0 |
10.8 |
18.84 |
/ |
53.7 |
|
AHBLCD/HBLCD-700 |
700 |
7180 |
12540× 6640 |
370000 |
5000 |
18.5 |
14.75 |
26.81 |
/ |
54.5 |
|
AHBLG/HBLG-300 |
/ |
4514 |
7250× 3810 |
200000 |
3400 |
11.0 |
6.13 |
13.66 |
300 |
64.5 |
|
AHBLG/HBLG-500 |
/ |
5230 |
8033× 4650 |
320000 |
4200 |
18.5 |
9.42 |
17.46 |
500 |
65.0 |
|
AHBLG/HBLG-700 |
/ |
5319 |
8930× 6640 |
450000 |
5000 |
30.0 |
13.19 |
26.29 |
700 |
66.0 |
|
The standard point noise is measured at a distance equal to the equivalent diameter of the air inlet window or its shield equivalent diameter, and 1.5 meters above the ground. The equivalent diameter Dₘis calculated by the formula: Dₘ= 1.13×Length×Width |
||||||||||
|
Features |
The FRP cooling tower serves not only as a temperature regulator but also delivers an efficient, durable, and maintenance-free solution with optimized lifecycle costs. By harnessing the unique properties of FRP materials, it fundamentally addresses the critical challenges of corrosion and lifespan limitations in harsh operating environments, making it the go-to choice for cooling systems in modern industrial and commercial facilities. |
|||||||||
|
Application
|
Central air conditioning system: refrigeration station for commercial buildings, hotels and hospitals. |
|||||||||
|
Industrial refrigeration: process cooling for food processing, chemical, pharmaceutical and plastic industries. |
||||||||||
|
Power industry: auxiliary cooling system for thermal power plant and nuclear power plant. |
||||||||||
|
Manufacturing industry: circulating water cooling for metallurgical and mechanical processing plants. |
||||||||||
|
Data center: Provides cooling water for server rooms. |
||||||||||
|
Payment |
T/T, Western Union. |
|||||||||
|
Service |
Customize and design the size and style according to requirements |
|||||||||
