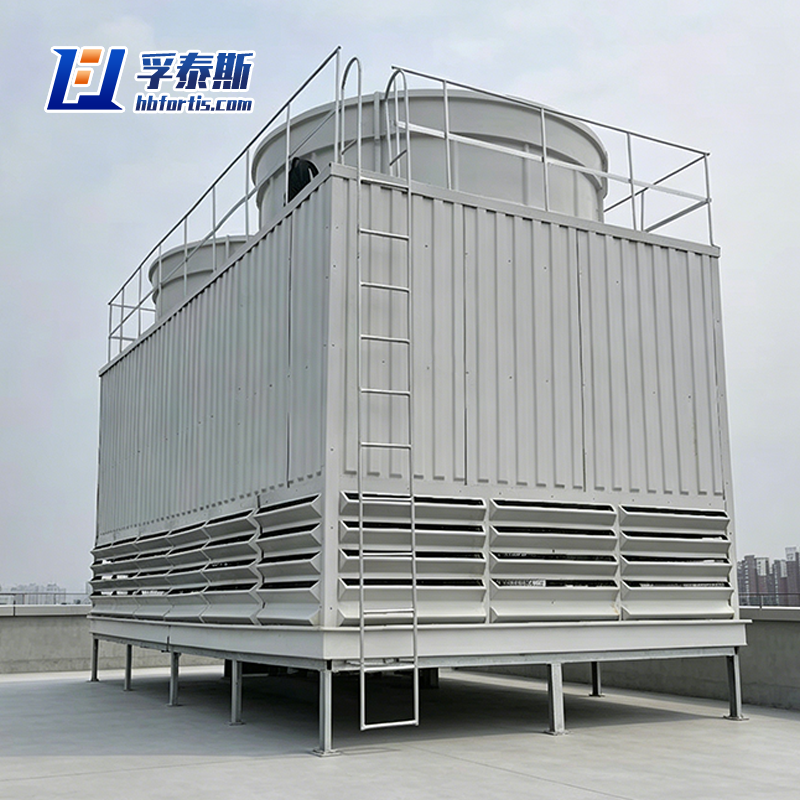

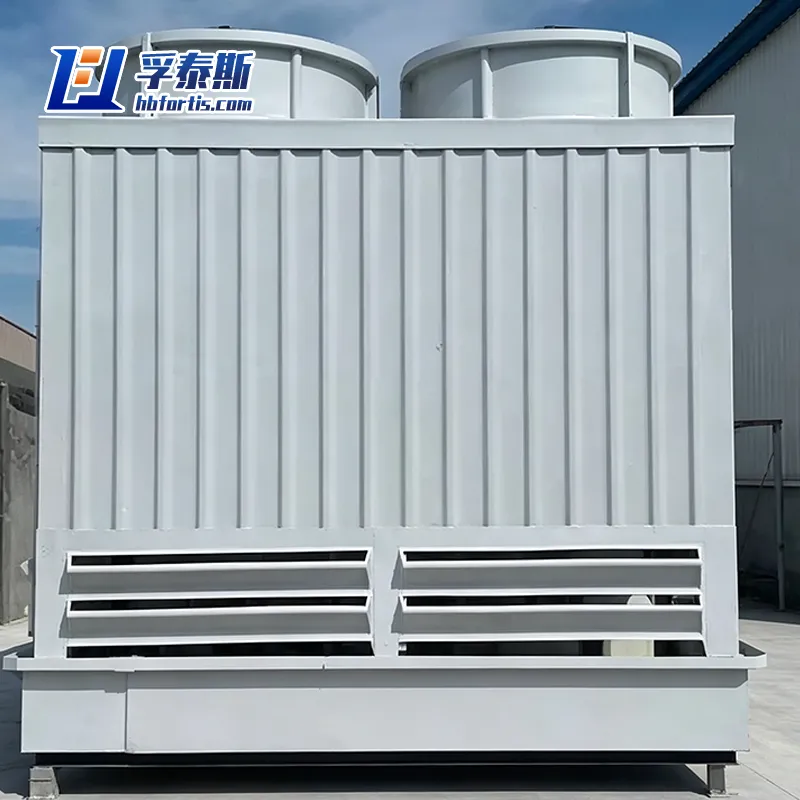

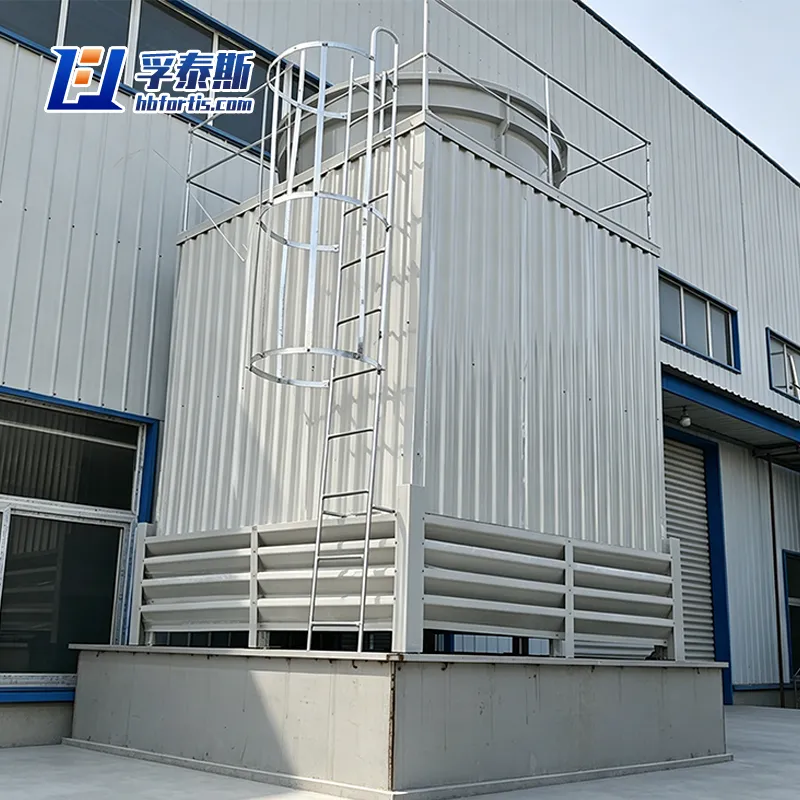

As a China-based factory-direct exporter, we engineer the HBLCD-300 square cross flow GRP cooling tower for high-stakes industrial cooling—from 24/7 data center heat rejection to food processing lines demanding condenser water purity. This tower features a single-piece molded GRP cold-water basin for zero seam corrosion, coupled with high-efficiency PVC fill that resists biological fouling. Its axial fan system delivers 300 m³/h nominal flow while maintaining sound levels as low as 42 dB(A) with optional speed drives. By supplying directly from our manufacturing hub, we eliminate trading company margins and provide full CTI/CE documentation, on-site commissioning guidance, and spare parts logistics tailored to your port of destination. We don't just sell towers; we deliver thermal reliability with factory accountability.
Hebei Fortis Technology Co., Ltd Produktbroschüre
Product Advantages
Zero-Seam GRP Basin – Eliminating Hidden Leak Pathways
Unlike traditional bolt-assembled cooling towers that rely on sealants and gaskets at the basin joints—which degrade under thermal cycling and UV exposure—the HBLCD-300 features a single-piece, compression-molded GRP cold-water basin. This monolithic structure removes every potential seam where water could escape or debris could accumulate. For overseas plants operating in remote locations where replacement parts are days away, this design directly translates to lower emergency repair calls, reduced makeup water costs, and uninterrupted production schedules.
Cross-Flow Gravity Distribution – Passive Redundancy for Harsh Environments
The square cross-flow configuration is not a cosmetic choice; it is a functional advantage for sites with variable water quality. Water flows vertically through the PVC fill by gravity, while air moves horizontally—meaning the fill stays fully wetted even if the spray pressure fluctuates. This passive distribution eliminates the need for high-maintenance nozzle arrays that frequently clog in open-loop systems fed from cooling ponds or recycled municipal water. For our factory-direct clients, this means fewer spare parts to stock and less downtime for manual cleaning, especially in cement, steel, or biomass power plant applications.
Drift Eliminator with <0.001% Water Loss – Regulatory Compliance Ready
Modern environmental regulations in the EU and North America are tightening drift emission limits to protect local water sources and reduce biocide carryover. The HBLCD-300 is factory-fitted with a high-velocity drift eliminator that achieves a tested loss rate of under 0.001% of circulating flow. This not only saves thousands of gallons annually for a 300 m³/h system but also allows your facility to pass EPA or local discharge permits without retrofitting aftermarket separators. We provide drift performance test reports with every shipment—a document many overseas consultants now demand before project approval.
Parameter Specifications
|
|
||||||||||
|
Product |
Square Cross Flow Cooling Tower |
|||||||||
|
Model |
τ=28℃ |
Main Dimensions (mm) |
Air Volume m³/h |
Fan Diameter (mm) |
Motor Installed Capacity (kw) |
Weight (t) |
τ=28℃ |
Noise at standard point |
||
|
Total Height |
Length× |
self-weight |
operating weight |
|||||||
|
AHBLD/HBLD-300 |
300 |
4514 |
7250× 3810 |
167000 |
3400 |
7.5 |
5.85 |
13.38 |
/ |
59.0 |
|
AHBLD/HBLD-500 |
500 |
5230 |
8033× 4650 |
260000 |
4200 |
11.0 |
9.2 |
17.24 |
/ |
61.5 |
|
AHBLD/HBLD-700 |
700 |
5319 |
8930× 6640 |
370000 |
5000 |
18.5 |
12.95 |
26.05 |
/ |
62.6 |
|
AHBLCD/HBLCD-300 |
300 |
6230 |
10650× 3810 |
167000 |
3400 |
7.5 |
7.05 |
14.18 |
/ |
52.5 |
|
AHBLCD/HBLCD-500 |
500 |
7030 |
11640× 4650 |
260000 |
4200 |
11.0 |
10.8 |
18.84 |
/ |
53.7 |
|
AHBLCD/HBLCD-700 |
700 |
7180 |
12540× 6640 |
370000 |
5000 |
18.5 |
14.75 |
26.81 |
/ |
54.5 |
|
AHBLG/HBLG-300 |
/ |
4514 |
7250× 3810 |
200000 |
3400 |
11.0 |
6.13 |
13.66 |
300 |
64.5 |
|
AHBLG/HBLG-500 |
/ |
5230 |
8033× 4650 |
320000 |
4200 |
18.5 |
9.42 |
17.46 |
500 |
65.0 |
|
AHBLG/HBLG-700 |
/ |
5319 |
8930× 6640 |
450000 |
5000 |
30.0 |
13.19 |
26.29 |
700 |
66.0 |
|
The standard point noise is measured at a distance equal to the equivalent diameter of the air inlet window or its shield equivalent diameter, and 1.5 meters above the ground. The equivalent diameter Dₘis calculated by the formula: Dₘ= 1.13×Length×Width |
||||||||||
|
Features |
The FRP cooling tower serves not only as a temperature regulator but also delivers an efficient, durable, and maintenance-free solution with optimized lifecycle costs. By harnessing the unique properties of FRP materials, it fundamentally addresses the critical challenges of corrosion and lifespan limitations in harsh operating environments, making it the go-to choice for cooling systems in modern industrial and commercial facilities. |
|||||||||
|
Application
|
Central air conditioning system: refrigeration station for commercial buildings, hotels and hospitals. |
|||||||||
|
Industrial refrigeration: process cooling for food processing, chemical, pharmaceutical and plastic industries. |
||||||||||
|
Power industry: auxiliary cooling system for thermal power plant and nuclear power plant. |
||||||||||
|
Manufacturing industry: circulating water cooling for metallurgical and mechanical processing plants. |
||||||||||
|
Data center: Provides cooling water for server rooms. |
||||||||||
|
Payment |
T/T, Western Union. |
|||||||||
|
Service |
Customize and design the size and style according to requirements |
|||||||||
