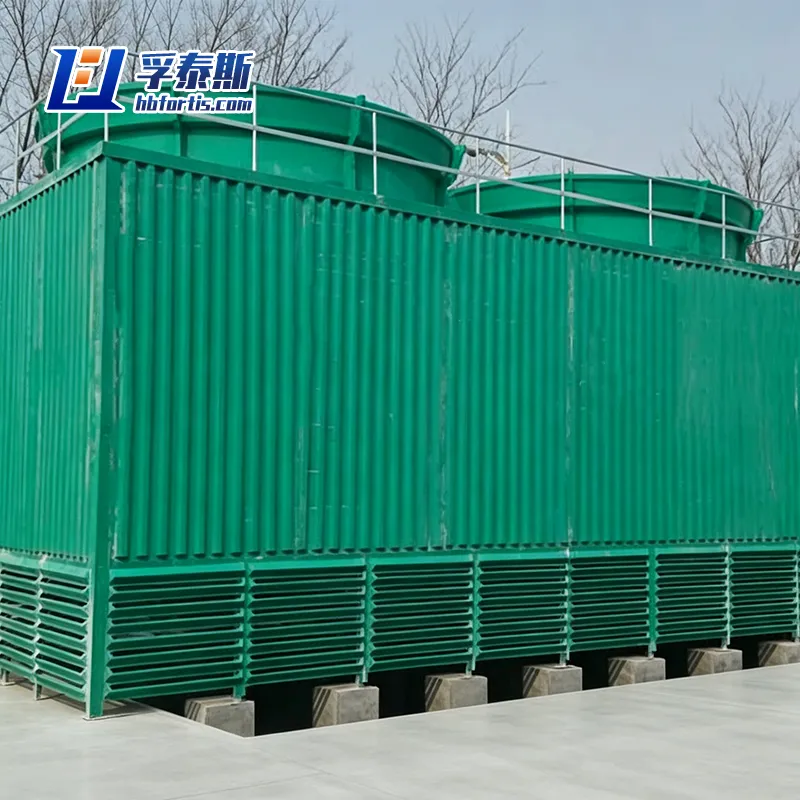

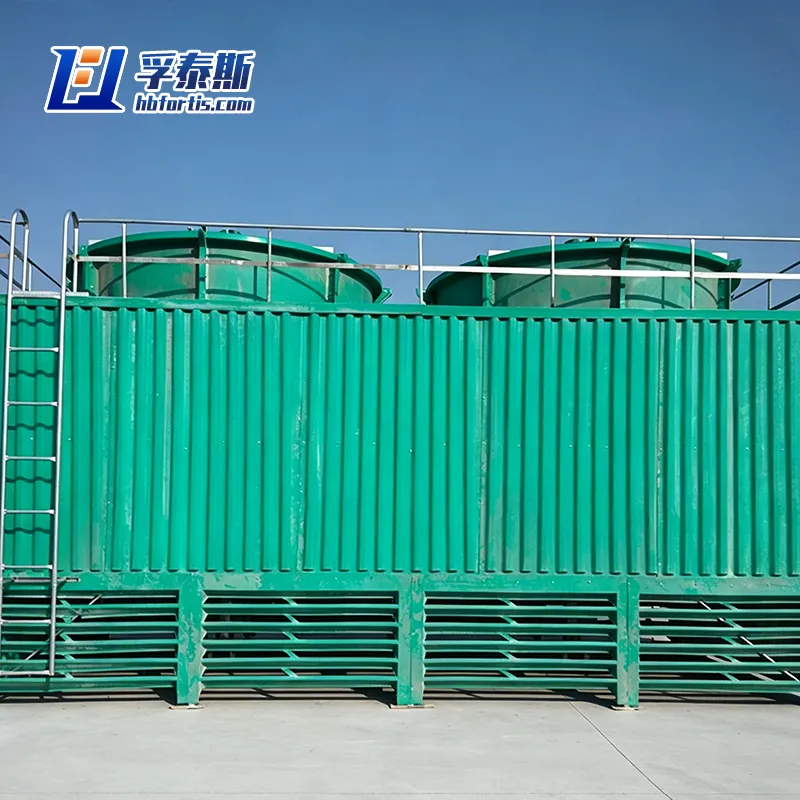

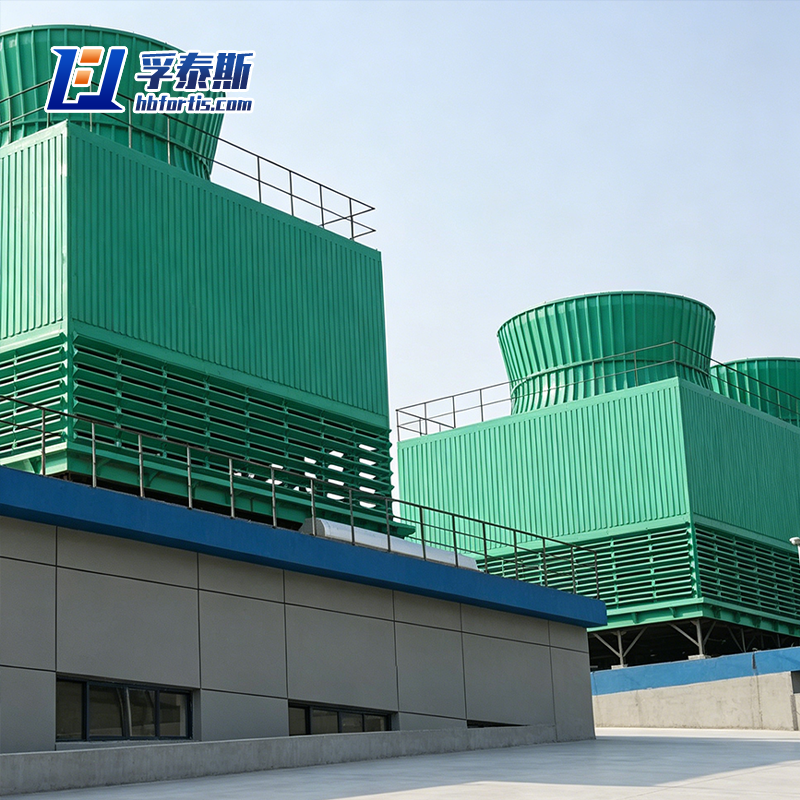

As a seasoned Chinese export supplier specializing in engineered thermal management solutions, we present the HBLCD-700 – a square-configured, cross-flow GFRP cooling tower purpose-built for mid-to-large scale industrial operations, including combined-cycle power plants, petrochemical processing, and central HVAC district cooling systems. Unlike round-counterflow units, our cross-flow design allows gravity-driven water distribution over a low-pressure drop fill, significantly cutting pumping energy while maintaining high approach temperatures under variable ambient conditions. The entire casing, basin, and fan stack are fabricated from advanced isophthalic GFRP resin with UV-stabilized gel coat, delivering 20+ years of structural integrity in coastal or chemically aggressive environments. As direct factory exporters, we provide full performance test reports per CTI-ATC-105, customized nozzle configurations, and flexible motor voltage (380V/415V/6.6kV) to match your project’s grid standard. Our export track record covers Southeast Asia, Middle East, and Latin America, with 45-day delivery and on-site commissioning support – bridging Chinese manufacturing efficiency with international reliability standards.
Hebei Fortis Technology Co., Ltd Produktbroschüre
Product Advantages
Modular Cell Design for Scalable Capacity
Each HBLCD-700 cell handles up to 700 m³/h of circulating water at standard 37–32°C cooling range. Multiple cells can be installed side-by-side with common header connections, allowing you to scale capacity incrementally as your production line expands. This modularity also enables staggered maintenance – you can isolate one cell for servicing while others remain online, avoiding full-plant shutdowns during peak seasons.
Heavy-Duty Drive Train with Low-Noise Fan Option
The tower is equipped with a right-angle gearbox drive (spiral bevel gears) and a balanced, corrosion-resistant FRP fan with adjustable pitch blades. For noise-sensitive sites (e.g., near residential zones or hospitals), we offer a low-speed fan option (under 70 dBA at 15 meters) without sacrificing airflow. The drive shaft features a torque-limiting coupling that protects against motor overload during sudden voltage fluctuations – a common issue in developing grid systems.
Factory-Integrated Accessories for Plug-and-Play Installation
As a direct exporter, we pre-mount key components – including the fan deck handrails, vibration switches, water-level float valves, and drift eliminators – inside the shipping frame. Each cell arrives with labelled piping stubs, electrical junction boxes, and a detailed 3D assembly drawing. This reduces onsite fitting time by 40% compared to CKD (completely knocked down) imports, and our engineers provide WhatsApp-based video guidance for final alignment, saving you expensive third-party supervision fees.
Parameter Specifications
|
|
||||||||||
|
Product |
Square Cross Flow Cooling Tower |
|||||||||
|
Model |
τ=28℃ |
Main Dimensions (mm) |
Air Volume m³/h |
Fan Diameter (mm) |
Motor Installed Capacity (kw) |
Weight (t) |
τ=28℃ |
Noise at standard point |
||
|
Total Height |
Length× |
self-weight |
operating weight |
|||||||
|
AHBLD/HBLD-300 |
300 |
4514 |
7250× 3810 |
167000 |
3400 |
7.5 |
5.85 |
13.38 |
/ |
59.0 |
|
AHBLD/HBLD-500 |
500 |
5230 |
8033× 4650 |
260000 |
4200 |
11.0 |
9.2 |
17.24 |
/ |
61.5 |
|
AHBLD/HBLD-700 |
700 |
5319 |
8930× 6640 |
370000 |
5000 |
18.5 |
12.95 |
26.05 |
/ |
62.6 |
|
AHBLCD/HBLCD-300 |
300 |
6230 |
10650× 3810 |
167000 |
3400 |
7.5 |
7.05 |
14.18 |
/ |
52.5 |
|
AHBLCD/HBLCD-500 |
500 |
7030 |
11640× 4650 |
260000 |
4200 |
11.0 |
10.8 |
18.84 |
/ |
53.7 |
|
AHBLCD/HBLCD-700 |
700 |
7180 |
12540× 6640 |
370000 |
5000 |
18.5 |
14.75 |
26.81 |
/ |
54.5 |
|
AHBLG/HBLG-300 |
/ |
4514 |
7250× 3810 |
200000 |
3400 |
11.0 |
6.13 |
13.66 |
300 |
64.5 |
|
AHBLG/HBLG-500 |
/ |
5230 |
8033× 4650 |
320000 |
4200 |
18.5 |
9.42 |
17.46 |
500 |
65.0 |
|
AHBLG/HBLG-700 |
/ |
5319 |
8930× 6640 |
450000 |
5000 |
30.0 |
13.19 |
26.29 |
700 |
66.0 |
|
The standard point noise is measured at a distance equal to the equivalent diameter of the air inlet window or its shield equivalent diameter, and 1.5 meters above the ground. The equivalent diameter Dₘis calculated by the formula: Dₘ= 1.13×Length×Width |
||||||||||
|
Features |
The FRP cooling tower serves not only as a temperature regulator but also delivers an efficient, durable, and maintenance-free solution with optimized lifecycle costs. By harnessing the unique properties of FRP materials, it fundamentally addresses the critical challenges of corrosion and lifespan limitations in harsh operating environments, making it the go-to choice for cooling systems in modern industrial and commercial facilities. |
|||||||||
|
Application
|
Central air conditioning system: refrigeration station for commercial buildings, hotels and hospitals. |
|||||||||
|
Industrial refrigeration: process cooling for food processing, chemical, pharmaceutical and plastic industries. |
||||||||||
|
Power industry: auxiliary cooling system for thermal power plant and nuclear power plant. |
||||||||||
|
Manufacturing industry: circulating water cooling for metallurgical and mechanical processing plants. |
||||||||||
|
Data center: Provides cooling water for server rooms. |
||||||||||
|
Payment |
T/T, Western Union. |
|||||||||
|
Service |
Customize and design the size and style according to requirements |
|||||||||
