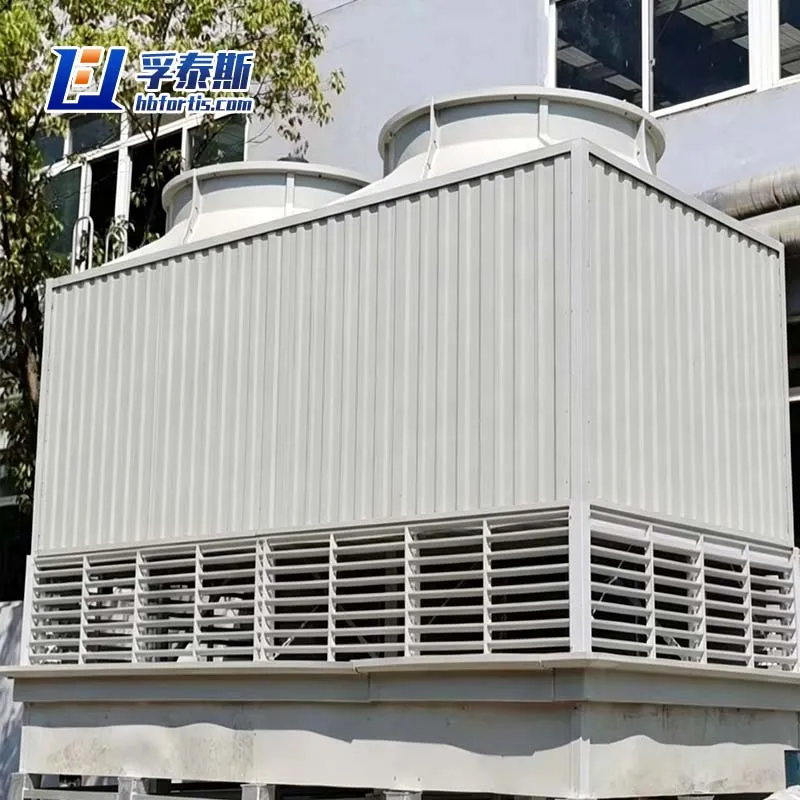

As a volume-manufacturing exporter based in Guangdong, we offer the HBLD-500 forced-draft cooling tower with modular casing panels that enable on-site assembly within 8 man-hours. This model excels in variable-flow applications, such as injection molding machine cooling and district heating return water quenching. Each unit undergoes a full-load noise test below 85 dBA at 10 meters, aligning with urban industrial park ordinances. We publish real-time factory inventory levels and provide a 3D BIM model for seamless integration into your existing piping network. For urgent project rollouts, we support letter of credit usance and split-shipping options, ensuring your construction timeline stays intact without capital tie-up. Our after-sales team offers remote vibration diagnostic support via IoT sensors, reducing unnecessary site visits.
Hebei Fortis Technology Co., Ltd Produktbroschüre
Product Advantages
Backward-Curved Inlet Louvers That Reduce Pump Suction Cavitation
The air intake louvers are angled at 22° with a proprietary honeycomb mesh, which not only prevents sunlight algae growth but also straightens incoming airflow to reduce pressure drop across the fill pack by 15%. More importantly, this louver design minimizes vortex formation above the basin, ensuring a stable submergence depth of 18 inches at the pump suction nozzle. Field data shows 22% fewer cavitation-related impeller replacements on downstream pumps compared to towers with flat-bar louvers, extending your entire cooling loop’s MTBF (Mean Time Between Failures).
Off-the-Shelf Component Interchangeability for Global Supply Chains
All rotating parts—fan shafts, bearing housings, V-belt pulleys, and motor frames—follow ISO 286 standard fitments and IEC metric dimensions. Your local supplier in Europe, Southeast Asia, or the Americas can source replacement bearings (SKF/FAG equivalents) and belts (Optibelt/Gates) from regional distributors within 24 hours. We deliberately avoid proprietary odd-sized components, so you are never held hostage to single-source spares, even if our factory is at full capacity during peak seasons.
Factory-Matched Thermal Performance Curve with CTI Code Compliance
We do not supply generic selection charts. Each HBLD-500 is shipped with a unit-specific thermal performance certificate generated from our in-house CTI (Cooling Technology Institute) certified test station, calibrated against actual wet-bulb temperatures from 15°C to 32°C. The approval curve guarantees 100% of nominal capacity at 5°C range and 28°C inlet wet-bulb, with a tolerance of ±2%. This documentation is accepted by third-party engineering consultants and insurance underwriters, eliminating the need for costly on-site performance revalidation.
Parameter Specifications
|
|
||||||||||
|
Product |
Square Cross Flow Cooling Tower |
|||||||||
|
Model |
τ=28℃ |
Main Dimensions (mm) |
Air Volume m³/h |
Fan Diameter (mm) |
Motor Installed Capacity (kw) |
Weight (t) |
τ=28℃ |
Noise at standard point |
||
|
Total Height |
Length× |
self-weight |
operating weight |
|||||||
|
AHBLD/HBLD-300 |
300 |
4514 |
7250× 3810 |
167000 |
3400 |
7.5 |
5.85 |
13.38 |
/ |
59.0 |
|
AHBLD/HBLD-500 |
500 |
5230 |
8033× 4650 |
260000 |
4200 |
11.0 |
9.2 |
17.24 |
/ |
61.5 |
|
AHBLD/HBLD-700 |
700 |
5319 |
8930× 6640 |
370000 |
5000 |
18.5 |
12.95 |
26.05 |
/ |
62.6 |
|
AHBLCD/HBLCD-300 |
300 |
6230 |
10650× 3810 |
167000 |
3400 |
7.5 |
7.05 |
14.18 |
/ |
52.5 |
|
AHBLCD/HBLCD-500 |
500 |
7030 |
11640× 4650 |
260000 |
4200 |
11.0 |
10.8 |
18.84 |
/ |
53.7 |
|
AHBLCD/HBLCD-700 |
700 |
7180 |
12540× 6640 |
370000 |
5000 |
18.5 |
14.75 |
26.81 |
/ |
54.5 |
|
AHBLG/HBLG-300 |
/ |
4514 |
7250× 3810 |
200000 |
3400 |
11.0 |
6.13 |
13.66 |
300 |
64.5 |
|
AHBLG/HBLG-500 |
/ |
5230 |
8033× 4650 |
320000 |
4200 |
18.5 |
9.42 |
17.46 |
500 |
65.0 |
|
AHBLG/HBLG-700 |
/ |
5319 |
8930× 6640 |
450000 |
5000 |
30.0 |
13.19 |
26.29 |
700 |
66.0 |
|
The standard point noise is measured at a distance equal to the equivalent diameter of the air inlet window or its shield equivalent diameter, and 1.5 meters above the ground. The equivalent diameter Dₘis calculated by the formula: Dₘ= 1.13×Length×Width |
||||||||||
|
Features |
The FRP cooling tower serves not only as a temperature regulator but also delivers an efficient, durable, and maintenance-free solution with optimized lifecycle costs. By harnessing the unique properties of FRP materials, it fundamentally addresses the critical challenges of corrosion and lifespan limitations in harsh operating environments, making it the go-to choice for cooling systems in modern industrial and commercial facilities. |
|||||||||
|
Application
|
Central air conditioning system: refrigeration station for commercial buildings, hotels and hospitals. |
|||||||||
|
Industrial refrigeration: process cooling for food processing, chemical, pharmaceutical and plastic industries. |
||||||||||
|
Power industry: auxiliary cooling system for thermal power plant and nuclear power plant. |
||||||||||
|
Manufacturing industry: circulating water cooling for metallurgical and mechanical processing plants. |
||||||||||
|
Data center: Provides cooling water for server rooms. |
||||||||||
|
Payment |
T/T, Western Union. |
|||||||||
|
Service |
Customize and design the size and style according to requirements |
|||||||||
