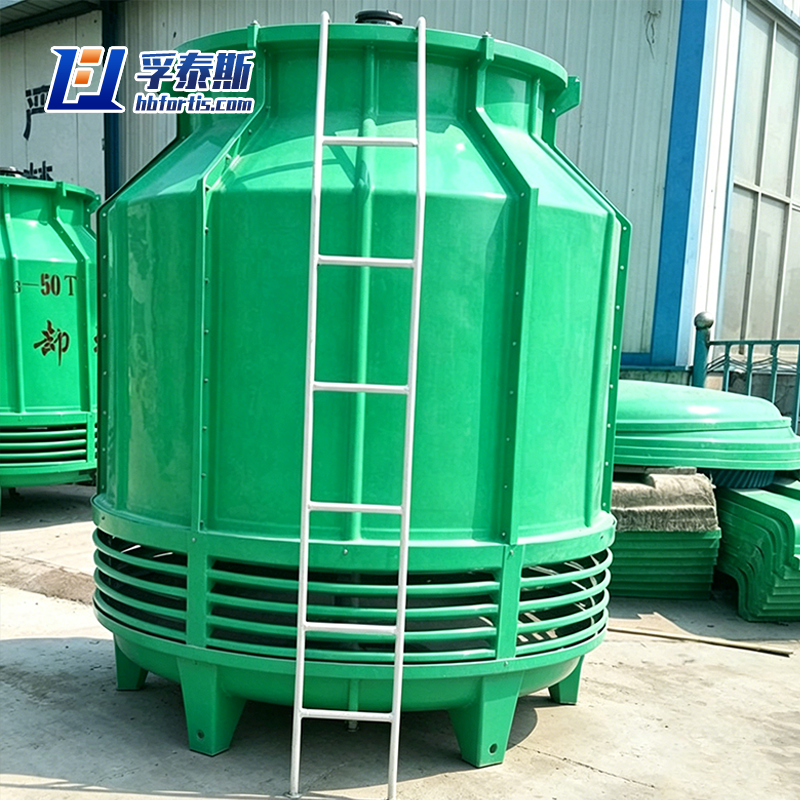

We supply water-collecting counterflow FRP cooling towers engineered for low-noise operation in noise-sensitive environments such as hotels, semiconductor plants, and urban district cooling stations. Our closed-loop counterflow design maximizes thermal exchange efficiency while the integrated bottom basin reduces pumping head and water drift loss to <0.005%. Every unit undergoes vibration analysis and airflow balancing at our ISO-certified factory, ensuring stable performance under variable wet-bulb conditions. As an export-oriented manufacturer, we provide full documentation, including capacity curves, electrical wiring diagrams, and spare part lists, with direct container-loading support to major ports. Choose our direct factory partnership for consistent quality, transparent costing, and responsive technical support throughout your project lifecycle.
Hebei Fortis Technology Co., Ltd Produktbroschüre
Product Advantages
Hydraulic Integration – Built-in Water Collection Basin Reduces System Complexity
Unlike traditional crossflow or induced-draft towers that require separate external sump tanks, our counterflow FRP cooling tower features a factory-integrated water collecting basin at the base. This design shortens the circulating water return path, lowers pumping head requirements by 15–20%, and minimizes water splashing losses. The basin doubles as a structural stabilizer, reducing field installation time and eliminating the cost of additional concrete pits – a direct value-add for EPC contractors and plant engineers.
Acoustic Engineering – True Low-Noise Operation for Urban and Night-Sensitive Sites
We address strict noise ordinances by combining three silencing measures: (a) aerodynamically profiled fan blades with sinusoidal trailing edges to cut vortex noise, (b) a high-efficiency belt-driven gearbox with silicone vibration dampers, and (c) an optional discharge attenuator hood. The result is sound pressure levels consistently below 62 dB(A) at 10 meters under full load – making this tower suitable for hospital rooftop installations, hotel auxiliary cooling, and residential district energy stations where nighttime operation is mandatory.
Counterflow Thermal Core – Higher ΔT Performance with Anti-Fouling Fill
Our counterflow configuration places air and water in opposite directions, achieving a closer approach to wet-bulb temperature (as tight as 3.5°C) compared to crossflow designs. The PVC fill is arranged in a staggered蜂窝 pattern with self-draining slope, preventing biological fouling and scale accumulation even in hard-water regions. This thermal efficiency translates directly to lower condenser inlet temperatures, improving your chiller COP by 8–12% – a measurable energy saving over a 20-year service life.
Parameter Specifications
|
Product |
Low Noise collecting Type Counterflow FRP Cooling Tower |
|||||||||
|
|
||||||||||
|
Model |
τ=27℃ |
Main Dimensions (mm) |
Air Volume m³/h |
Fan Diameter (mm) |
Motor Power (kw) |
weight (kg) |
inlet pressure 10⁴Pa |
noise at 10m dB (A) |
||
|
Total Height |
Maximum Diameter |
self-weight |
operating weight |
|||||||
|

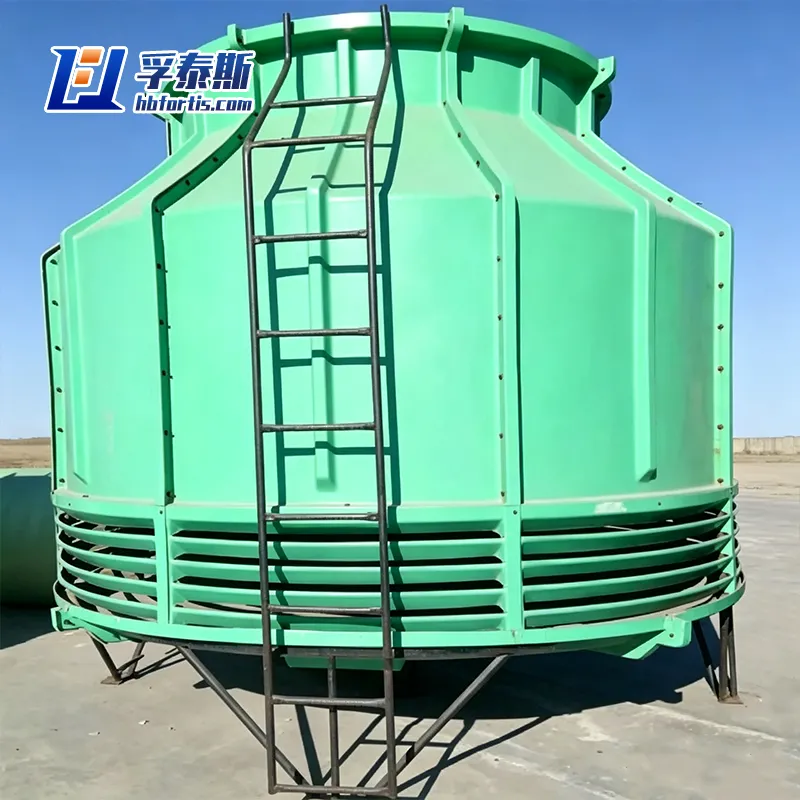

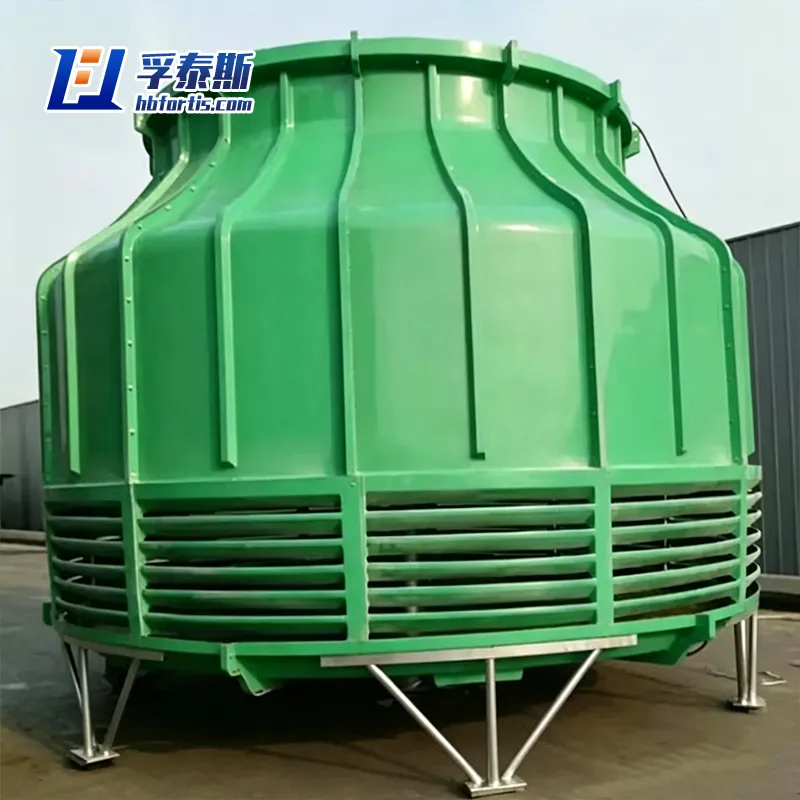

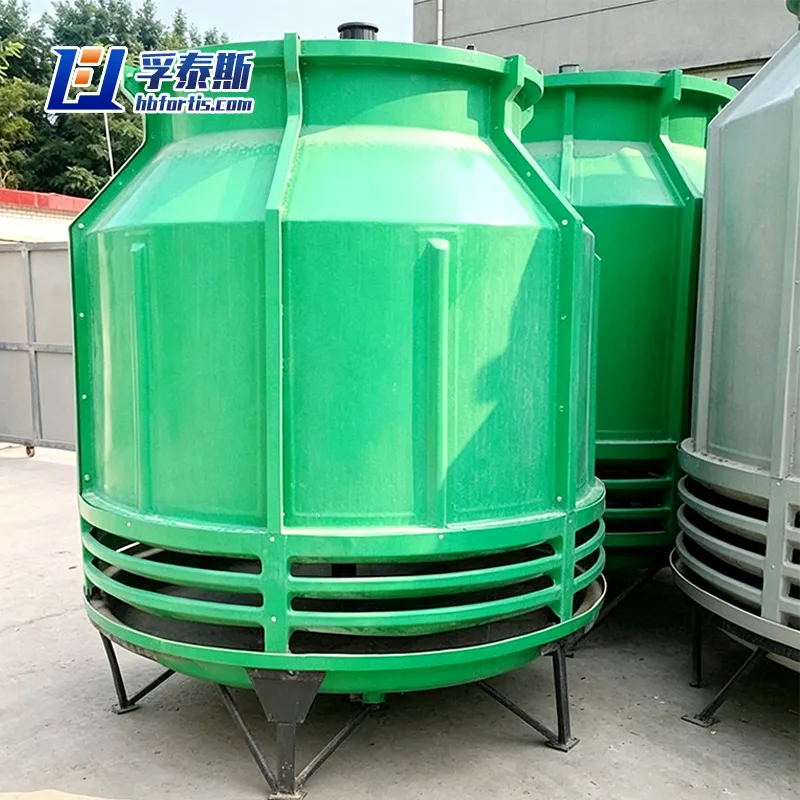

DBNL3J-12 |
15 |
2333 |
1210 |
7200 |
700 |
0.6 |
217 |
775 |
1.96 |
40.3 |
|
DBNL3J-20 |
24 |
2423 |
1460 |
12400 |
800 |
0.8 |
244 |
958 |
2 |
41.1 |
|
DBNL3J-30 |
35 |
2642 |
1912 |
18000 |
1200 |
0.8 |
424 |
1734 |
2.21 |
43.5 |
|
DBNL3J-40 |
46 |
3142 |
1912 |
21500 |
1200 |
1.1 |
496 |
1896 |
2.6 |
43.5 |
|
DBNL3J-50 |
57 |
3130 |
2215 |
28000 |
1400 |
1.5 |
617 |
2505 |
2.65 |
44.7 |
|
DBNL3J-60 |
68 |
3430 |
2215 |
32300 |
1400 |
1.5 |
667 |
2829 |
2.78 |
45.7 |
|
DBNL3J-70 |
79 |
3444 |
2629 |
39200 |
1600 |
2.2 |
824 |
3816 |
3.03 |
47 |
|
DBNL3J-80 |
92 |
3744 |
2629 |
43400 |
1600 |
2.2 |
909 |
4240 |
2.86 |
47.5 |
|
DBNL3J-100 |
114 |
3694 |
3134 |
56000 |
1800 |
3 |
1014 |
5932 |
3.15 |
50 |
|
DBNL3J-125 |
142 |
3944 |
3134 |
67200 |
1800 |
4 |
1104 |
6158 |
3.15 |
50.7 |
|
DBNL3J-150 |
171 |
3953 |
3732 |
84000 |
2400 |
4 |
1744 |
8246 |
2.9 |
52 |
|
DBNL3J-175 |
200 |
4203 |
3732 |
94300 |
2400 |
5.5 |
1884 |
8582 |
3.15 |
53 |
|
DBNL3J-200 |
231 |
4235 |
4342 |
112000 |
2800 |
5.5 |
2208 |
11210 |
3.01 |
54.6 |
|
DBNL3J-250 |
283 |
4485 |
4342 |
134300 |
2800 |
7.5 |
2420 |
11983 |
3.26 |
55.6 |
|
DBNL3J-300 |
334 |
4623 |
5134 |
168000 |
3400 |
11 |
3648 |
17173 |
3.5 |
56.8 |
|
DBNL3J-350 |
395 |
4873 |
5134 |
187400 |
3800 |
11 |
3950 |
17850 |
3.75 |
57.3 |
|
DBNL3J-400 |
455 |
5018 |
6044 |
224000 |
3800 |
11 |
4406 |
23132 |
3.6 |
58.8 |
|
DBNL3J-450 |
514 |
5268 |
6044 |
242000 |
3800 |
11 |
4752 |
24510 |
3.85 |
58.8 |
|
DBNL3J-500 |
576 |
5619 |
6746 |
280000 |
4200 |
15 |
5887 |
30062 |
3.7 |
60 |
|
DBNL3J-600 |
680 |
6119 |
6746 |
302200 |
4200 |
18.5 |
6689 |
32164 |
4.2 |
61 |
|
Features |
The FRP cooling tower serves not only as a temperature regulator but also delivers an efficient, durable, and maintenance-free solution with optimized lifecycle costs. By harnessing the unique properties of FRP materials, it fundamentally addresses the critical challenges of corrosion and lifespan limitations in harsh operating environments, making it the go-to choice for cooling systems in modern industrial and commercial facilities. |
|||||||||
|
Application
|
Central air conditioning system: refrigeration station for commercial buildings, hotels and hospitals. |
|||||||||
|
Industrial refrigeration: process cooling for food processing, chemical, pharmaceutical and plastic industries. |
||||||||||
|
Power industry: auxiliary cooling system for thermal power plant and nuclear power plant. |
||||||||||
|
Manufacturing industry: circulating water cooling for metallurgical and mechanical processing plants. |
||||||||||
|
Data center: Provides cooling water for server rooms. |
||||||||||
|
Payment |
T/T, Western Union. |
|||||||||
|
Service |
Customize and design the size and style according to requirements |
|||||||||
