Designed for residential, hospitality, and agricultural applications, our FRP septic tank provides a high-strength, non-corrosive solution for below-ground sewage treatment. Unlike concrete or steel alternatives, this fiberglass tank resists chemical degradation, root intrusion, and soil shifting, ensuring zero leakage for over 30 years. Lightweight structure reduces transport and labor costs, while customizable sizes serve households, hotels, or livestock farms. Each unit undergoes hydraulic and vacuum testing before shipment. Whether you need a compact tank for a mountain cabin or a high-volume system for a resort, our FRP septic tanks meet international environmental standards. Backed by a Chinese factory with BSCI audit and fast lead times. Request a technical drawing or installation manual today.
Hebei Fortis Technology Co., Ltd
Product Advantages
1.Leak-proof, acid and alkali resistant, safe, durable, and robust.
Made of synthetic resin, glass fiber, and other high-strength, acid and alkali resistant polymer materials, it is manufactured via computer-controlled mechanical filament winding technology. This process provides the tank with superior hoop strength and structural stability.
2.Fast Construction and Easy Installation

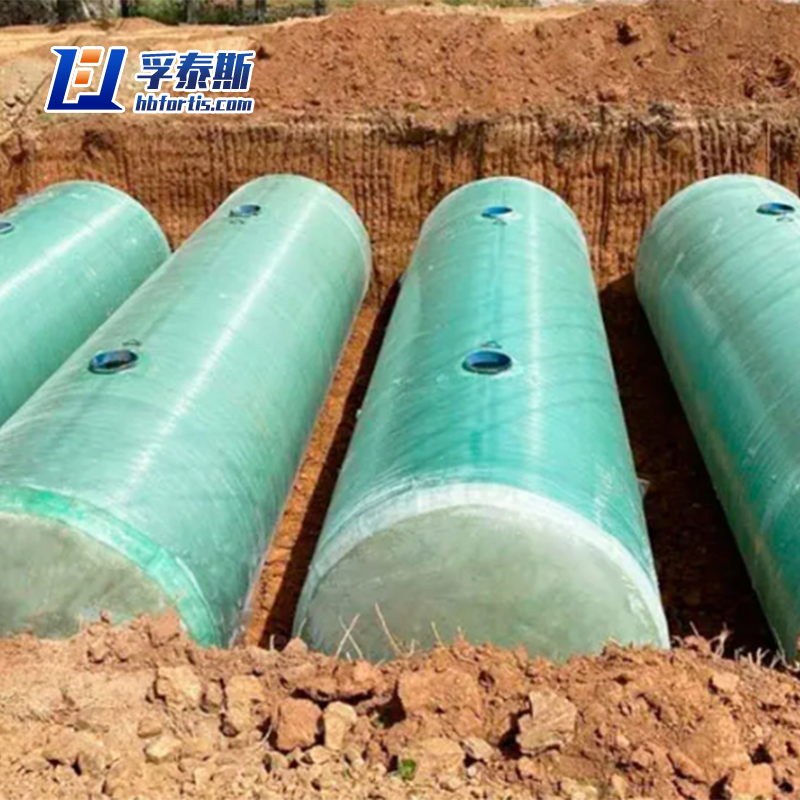

The construction speed is fast, and it can be installed and put into use on the same day. On-site, only the foundation pit needs to be excavated as required. It can be used two hours after installation. The prefabricated integral wound structure facilitates rushing the construction period and avoids the risk of foundation pit collapse due to time delays.
3.No special management required; long sludge cleaning interval.
With an underground installation design, it requires no power supply, no special management, and almost no maintenance. It is recommended to remove sludge once every 5 to 9 months.
4.Pollution-free in use with high environmental benefits.
The filament wound FRP septic tank features excellent sealing performance and leak-proof integrity. It does not contaminate surface water nor corrode the surrounding environment (such as flowers, plants, and trees). After multiple sedimentation and fermentation processes in the tank, parasite eggs and pathogens are effectively eliminated, and the effluent from the clarification chamber is purified, harmless organic fertilizer.
Application Scenarios
Applicable to the treatment and reuse of domestic sewage in residential districts, villages, towns, office buildings, shopping malls, hotels, restaurants, sanatoriums, government agencies, schools, military camps, hospitals, expressways, railways, factories, mines, tourist attractions and other places.
Treatment and reuse of industrial organic wastewater from small and medium-sized enterprises (SMEs) such as slaughtering, aquatic product processing, and food processing industries.
Parameter Specifications
|
Product |
FRP Septic Tank (Filament Winding) |
||||
|
|
|||||
|
Model |
Volume(m³) |
Diameter(mm) |
Total Length(mm) |
Shell Thickness (mm) |
Number of Baffles |
|
FT-STF14 |
20 |
2300 |
4850 |
7 |
1 |
|
FT-STF15 |
25 |
2300 |
6050 |
7 |
2 |
|
FT-STF16 |
30 |
2300 |
7250 |
7 |
2 |
|
FT-STF17 |
30 |
2800 |
4900 |
7 |
2 |
|
FT-STF18 |
35 |
2800 |
5700 |
7 |
2 |
|
FT-STF19 |
40 |
2800 |
6500 |
7 |
2 |
|
FT-STF20 |
45 |
2800 |
7300 |
7 |
2 |
|
FT-STF21 |
50 |
2800 |
8100 |
7 |
2 |
|
FT-STF22 |
50 |
3200 |
6250 |
7 |
2 |
|
FT-STF23 |
55 |
2800 |
8900 |
8 |
2 |
|
FT-STF24 |
60 |
2800 |
9800 |
8 |
2 |
|
FT-STF25 |
60 |
3200 |
7500 |
8 |
2 |
|
FT-STF26 |
65 |
2800 |
10600 |
8 |
2 |
|
FT-STF27 |
70 |
2800 |
11400 |
8 |
2 |
|
FT-STF28 |
75 |
2800 |
12200 |
8 |
2 |
|
FT-STF29 |
75 |
3200 |
9350 |
8 |
2 |
|
FT-STF30 |
80 |
3200 |
10000 |
8 |
2 |
|
FT-STF31 |
90 |
3200 |
11250 |
8 |
2 |
|
FT-STF32 |
100 |
3200 |
12450 |
8 |
2 |
|
FT-STF33 |
100 |
3500 |
10400 |
11 |
2 |
|
FT-STF34 |
110 |
3500 |
11450 |
12 |
2 |
|
FT-STF35 |
120 |
3500 |
12500 |
12 |
2 |
|
FT-STF36 |
130 |
3500 |
13550 |
13 |
2 |
